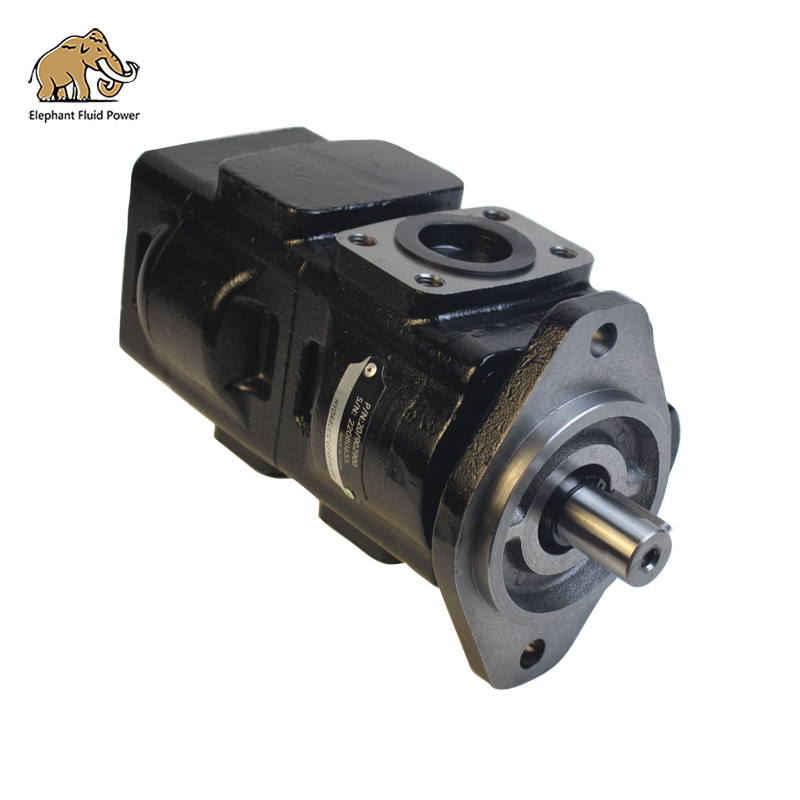

Chinese Factoty Price JCB 20/902900 Hydraulic Pumps JCB 3cx 4cx
Backhoe Loader Parts
Elephant Fluid Power Co.,Ltd can provide Chinese Factoty Price JCB
20/925592 Hydraulic Pumps Hydraulic Pump JCB 3cx 4cx Backhoe Loader
Parts,our pump has equivalent quality as original parker,more
favorable price,fast lead time,1 year warranty since sales,is your
first choice for Parker JCB pumps replacement.
Technical SpecifiCAATions:
Rotation: Counter-Clockwise (looking from shaft end)
Shaft: 1” Diameter Parallel Keyed Shaft
Mounting Flange: SAE B 2 Hole
Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm)
Middle Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm)
Inlet: Combined 2” SAE Flange
Front Pump Outlet: 1 1/16”-12 UNF Threaded
Rear Pump Outlet: 7/8”-14 UNF Threaded
Maximum Working Pressure On Front Pump: 275 bar
Maximum Working Pressure On Rear Pump: 275 bar
Max. Input Shaft Torque: 325 Nm
Weight: 26 KG
Replaces the following JCB part numbers
20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072
Machine Fitment
PUMP, MAIN HYDRAULIC CODE 4070 3CXSM Sideshift AR AK Engine
9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX Sideshift AA AB Engine
9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX CONTRACTOR Sideshift
AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T Centremount AR AK Engine
9802/9760
PUMP, MAIN HYDRAULIC CODE 4070 3CX (CM) Centremount AA AB Engine
9802/9720
PUMP, MAIN HYDRAULIC CODE 4070 3CX PC Sideshift Servo AR/AK Engine
9802/9770
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CXSM Sideshift AA AB
Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T PC Centremount Servo AR/AK
Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4070 3CX Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 3CXSM PC Sideshift Servo AR/AK
Engine 9802/9770
PUMP, MAIN HYDRAULIC M410293 3CXHM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXSM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXHM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXT 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CX 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXSM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 30 Sideshift 9802/9600
Our JCB pumps models:
| JCB CODE of Gear Pump |
| 332/F9030 20/925580 7029120047 |
| 333/G5390 332/G7135 |
| 332/F9032 |
| 332/F9029 20/925579 20/925339 20/925338 |
| 332/F9031 20/925581 333/G5391 |
| 20/925340 7029120005 |
| 20/925341 |
| 20/925366 220/925586 333/C5234 333/G5392 |
| 20/925337 |
| 20/925578 20/925586 332/F9028 |
| 20/912800 20/903100 20/902900 |
| 20/903200 20/911200 |
| 20/902900 |
| 20/903000 |
| 20/903300 4074 |
| 20/925592 20/925357 |
| 7049520006 332/E6671 |
| 919/75002 |
| 20/925732 7049532007 |
| 20/925588 20/925356 7029530002 |
| 20/925591 20/918300 333/G5393 |
