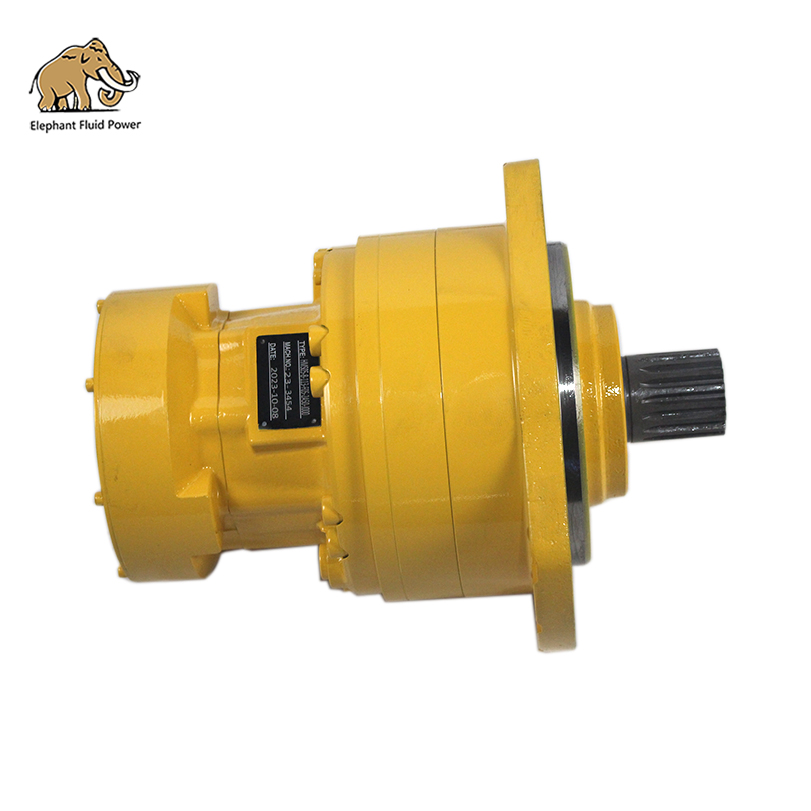

HMS(E)05 Poclain hydraulic motors equivalent for construction
machinery
Product Description
Elephant fluid power company supply the series hydraulic motors,
like HMS05/HMSE05 Series piston motors
matching Polcain motors, the same specifiion, same design, and
performance,100% replacement of original type.HMS05/HMSE05 Hydraulic Motor Appliions:
Mining Machinery: Coal Mine Drill, Heavy Duty Handling Car.
Engineering Machinery: Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Ditcher
| Type | HMS05 | HMSE05 |
| Displacement | 6 | 8 | 0 | 1 | 2 | 8 | 0 | 1 | 2 | 3 |
| Displacement(ml/r) | 260 | 376 | 468 | 514 | 560 | 503 | 625 | 688 | 750 | 820 |
| Theoretical torque at 10Mpa(N.m) | 413 | 598 | 744 | 817 | 890 | 800 | 994 | 1094 | 1193 | 1304 |
| Rated speed(r/min) | 160 | 160 | 125 | 125 | 125 | 100 | 400 | 100 | 80 | 80 |
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N. m) | 850 | 1200 | 1500 | 1650 | 1800 | 1650 | 2050 | 2250 | 2450 | 2650 |
| Max pressure(MPa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 1050 | 1500 | 1850 | 2050 | 2250 | 2030 | 2500 | 2750 | 3000 | 3300 |
| Speed range(r/min) | 0-265 | 0-250 | 0-240 | 2-220 | 0-200 | 0-200 | 0-190 | 0-175 | 0-160 | 0-140 |
| Max.power(kw) | Standard displacement is 29kW, variable displacement priority
rotation 19kW.
no priority is 15kW |
features:
-- High performance rotary group with well-proven spherical control
area offering the following advantages, self-centering.
-- Low periph-eral speed
-- High efficient.
-- Long service life robust rolling bearing.
-- Drive shaft will support radial loads.
-- Low noise level.
-- High duty roller bearing for intermettent high pressure
operation.
-- For continuous duty hydrostatic are availabe.
-- Excellent starting characteristics.
-- High power density
-- Optional mounting position
Our advantages:
High performance:The performance of our motor is very close to
Poclain & Rexroth original motors, even sometimes be superior to
original motor.
100% interchangeable:Both complete motor and spare parts, our
products could completely replace to Poclain & Rexroth original
motors.
Reasonable price:In the spirit of winwin principle, our price
system has been settled much lower than Poclain & Rexroth original
motors.
Fast delivery time:Most of the spare parts we have inventory, so
that we can keep the delivery time within 10 days for regular
motor.
Excellent aftersales service:we have 12 months' quality warranty,
and within warranty time ,all repairment are free of charge.
Our company:
Elephant Fluid Power has been engaged in the hydraulic business
since the beginning of the 20th century. It has a history of nearly
20 years and has always been upholding the principles of "quality
first", "credit first" and "zero complaint", and has become a new
leader in the hydraulics industry. Elephant Fluid Power insists on
good products, good service, and has been providing customers with
better, more comprehensive hydraulic products, and constantly.
We are looking for good long business partner and friendship.
If you are interested in our products, please contact me, I will
provide the best price support and quality service.
I believe we will establish a good and long-term cooperation.
