    High Durability Replacement Sauer Hydraulic Piston Pump Assy LRR030

    Ask Lasest Price
    Brand Name : Elephant Fluid Power
    Model Number : Sauer
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 Sets/month
    Delivery Time : Based on inventory
    • Product Details
    • Company Profile

    High Durability Replacement Sauer Hydraulic Piston Pump Assy LRR030

    Sauer Hydraulic Piston Pump Assy LRR030

    Elephant fluid power supply A series of Sauer Piston pumps

    Best choice for replacment.

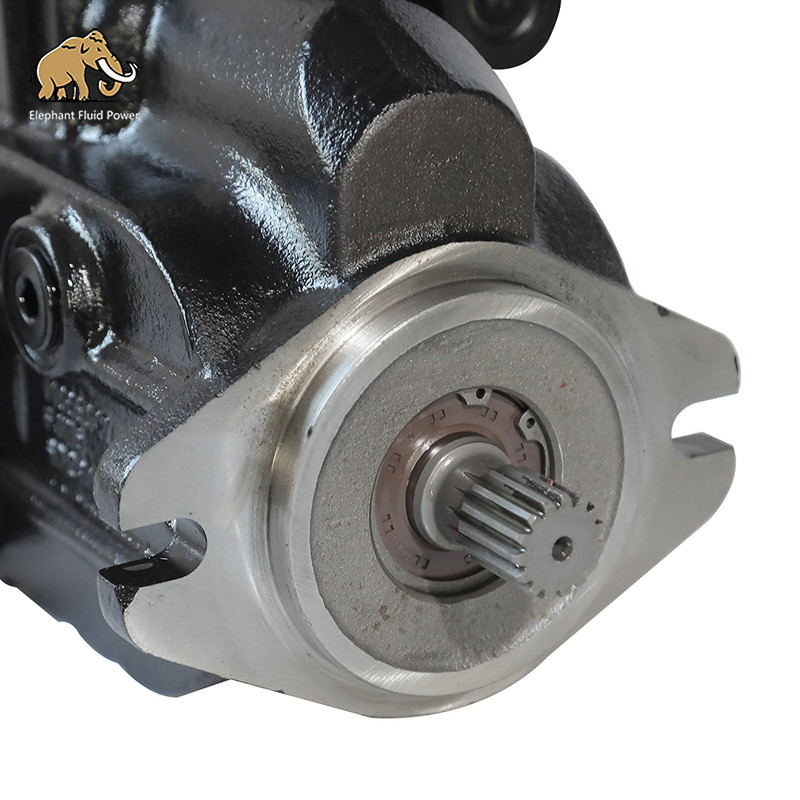

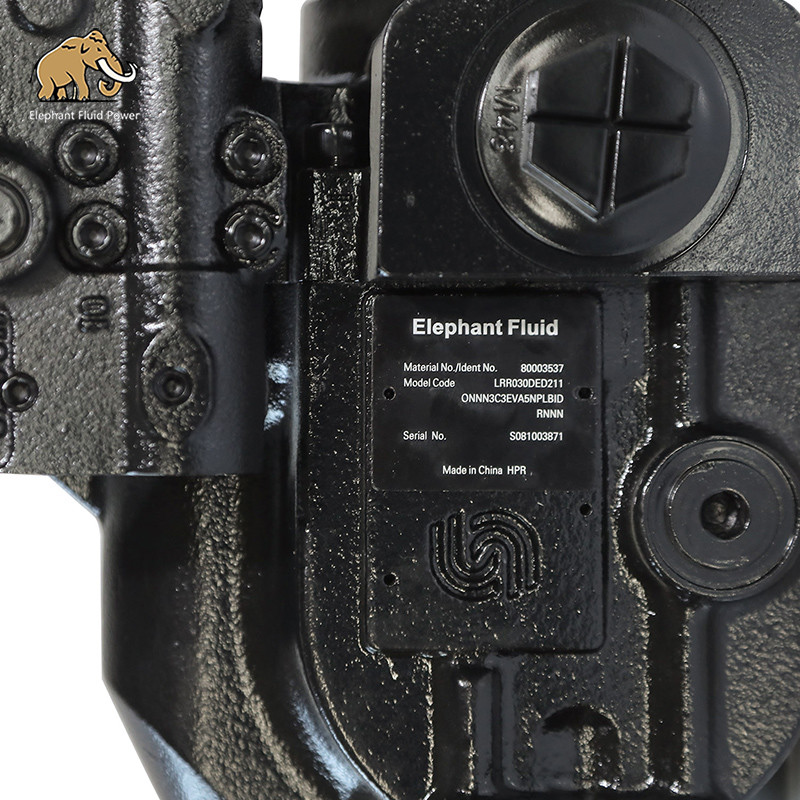

    Photos of LRR030

    High Durability Replacement Sauer Hydraulic Piston Pump Assy LRR030High Durability Replacement Sauer Hydraulic Piston Pump Assy LRR030High Durability Replacement Sauer Hydraulic Piston Pump Assy LRR030High Durability Replacement Sauer Hydraulic Piston Pump Assy LRR030

    Sauer 90 pump

    Hydraulic pump Sauer Sundstrand 90R series 90R030, 90R042, 90R055, 90R075, 90R100, 90R130, 90R180, 90R250
    90L series 90L030, 90L042, 90L055, 90L075, 90L100, 90L130, 90L180, 90L250

    Closed circuit
    Size 030 042 055 075 100 130 180 250
    Series 90
    Maximum loads of 480 bar (6960 psi)
    Controls device: CA, DC, DD, KA , KP, HF, MA, MB, etc.

    Series 90 axial piston variable displacement pumps are of cradle swash plate design with variable displacement, and are intended for closed circuit appliions. The flow rate is proportional to the pump input speed and displacement. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reversed by tilting the swash plate to the opposite side of the neutral (zero displacement) position.
    - The Series 90 - Advanced Technology Today
    - 8 Sizes of Variable Displacement Pumps
    - Complete Family of Control Systems
    - Proven Reliability and Performance
    - Optimum Product Configurations
    - Compact and Lightweight

    Technical Data
    Table of values (theoretical values, without efficiency and tolerances; values rounded)

    Sauer 90 Dimension 90R030
    90L030
    90R042
    90L042
    90R055
    90L055
    90R075
    90L075
    90R100
    90L100
    90R130
    90L130
    90R180
    90L180
    90R250
    90L250
    Displacement cm3 30 42 55 75 100 130 180 250
    in3 1.83 2.56 3.35 4.57 6.1 7.93 10.98 15.25
    Input speed Minimum min-1 (rpm) 500 500 500 500 500 500 500 500
    Rated min-1 (rpm) 4 200 4 200 3 900 3 600 3 300 3 100 2 600 2 300
    Maximum min-1 (rpm) 4 600 4 600 4 250 3 950 3 650 3 400 2 850 2 500
    Max. Attainable min-1 (rpm) 5 000 5 000 4 700 4 300 4 000 3 700 3 150 2 750
    Theoretical Nm/bar 0.48 0.67 0.88 1.19 1.59 2.07 2.87 3.97
    Torque in lb/1000 psi 290 410 530 730 970 1 260 1 750 2 433
    Mass moment of inertia of the int. rotating parts kg m2 0.0023 0.0039 0.006 0.0096 0.015 0.023 0.038 0.065
    lb • ft2 0.0546 0.0926 0.1424 0.228 0.356 0.546 0.902 1.543
    Weight (with MA Control) kg 28 34 40 49 68 88 136 154
    lb 62 75 88 108 150 195 300 340
