Here are the technical specifiions for the Poclain MS02 and MSE02
hydraulic motors:
1. Displacement: The MS02 motor is available in displacement sizes
ranging from 18 cc to 100 cc, while the MSE02 motor is available in
displacement sizes ranging from 18 cc to 94 cc.
2. Maximum Speed: The maximum speed for the MS02 motor ranges from
3,000 rpm to 4,000 rpm, while the maximum speed for the MSE02 motor
ranges from 3,000 rpm to 3,500 rpm.
3. Operating Pressure: The maximum operating pressure for both
motors is 350 bar (5,076 psi).
4. Efficiency: Both motors are designed to be highly efficient,
with maximum efficiency ranging from 90% to 94%.
5. Mounting: The MS02 and MSE02 motors have a standard ISO
four-bolt flange mounting pattern.
6. Shaft: The motors have a keyed shaft with a diameter of 25 mm
(0.98 inches).
7. Weight: The weight of the MS02 motor ranges from 3.5 kg to 10.5
kg (7.7 lbs to 23.1 lbs), while the weight of the MSE02 motor
ranges from 3.5 kg to 13 kg (7.7 lbs to 28.7 lbs).
Overall, the Poclain MS02 and MSE02 hydraulic motors are
high-quality products that are well-suited for a variety of
hydraulic appliions. Their high efficiency, reliability, and
durability make them a popular choice for use in agriculture,
construction, and industrial machinery.
Elephant fluid power company supply the series hydraulic radial
motors,
Such Poclain Brand, Rexroth Brand
Your Best Choice for the complete pump, spare parts replacements.
Same specifiion,
Same design, and performance,
100% replacement of original type
Saving your cost, and delivery time.
General Delivery time:
Complete Motor: Around 35 days
Spare Parts: 7 days
Price: Chinese Direct Factory Price, saving your Purchase Cost.
| MS Sereis: | MS(E)02,MS(E)05,MS(E)08,MS(E)11,MS(E)18,MS25,MS35,MS50,MS83,MS125... |
| MK Sereis: | MK04,MK(E)18,MK(E)23,MK35,MK47... |
| MHP Sereis: | MHP13,MHP20 ... |
| : | 3,5,10 .. |
| HDC(E): | HDC(E)02,HDC(E)05,HDC(E)08,HDC(E)11,HDC(E)18,HDC35,HDC50,HDC83,HDC125... |
| HTC(E): | HTC(E)02,HTC(E)05,HTC(E)08,HTC(E)11,HTC(E)18,HTC35,HTC50,HTC83,HTC125
... |
| HVK: | 7318, 8316, 8134, 8315, |
| HVL: | 8091, 8223 |
Brand New.
OEM Quality
Perforamance same with original.
Full Spare parts in Stock for Repair, Maitaince
12 Months warranty under normal use and maintenance
Your Best Choice for the spare parts repairing.

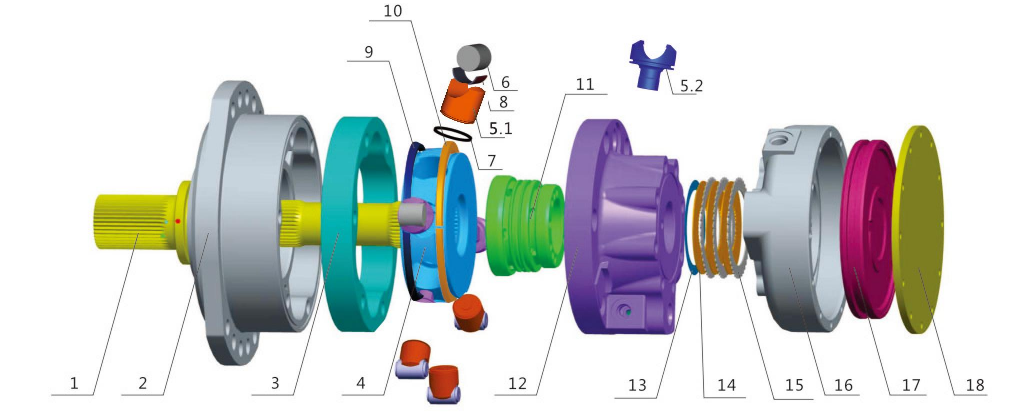

ITEM | DESCRIPTION | QTY | REMARK |
1 | DRIVE SHAFT | 1 | |
2 | FRONT COVER | 1 | |
3 | STATOR | 1 | |
4 | ROTOR | 1 | |
5.1 | PLUNGER PISTON | 8 | 03 |
5.2 | PLUNGER PISTON | 8 | E03 |
6 | ROLLER | 8 | |
7 | PISTON RING | 8 | |
8 | BUSHING | 8 | |
9 | BAFFLE RING | 2 | |
10 | CLIP RING | 2 | |
11 | DISTRIBUTOR | 1 | |
12 | REAR COVER | 1 | |
13 | ADJUSTING SHIIM | 2 | |
14 | DYNAMIC FRICTION | 13 | |
15 | STATIC FRICTION | 15 | |
16 | BRAKE CYLINDER | 1 | |
17 | BRAKE PLUNGER | 1 | |
18 | COVER PLATE | 1 | |
