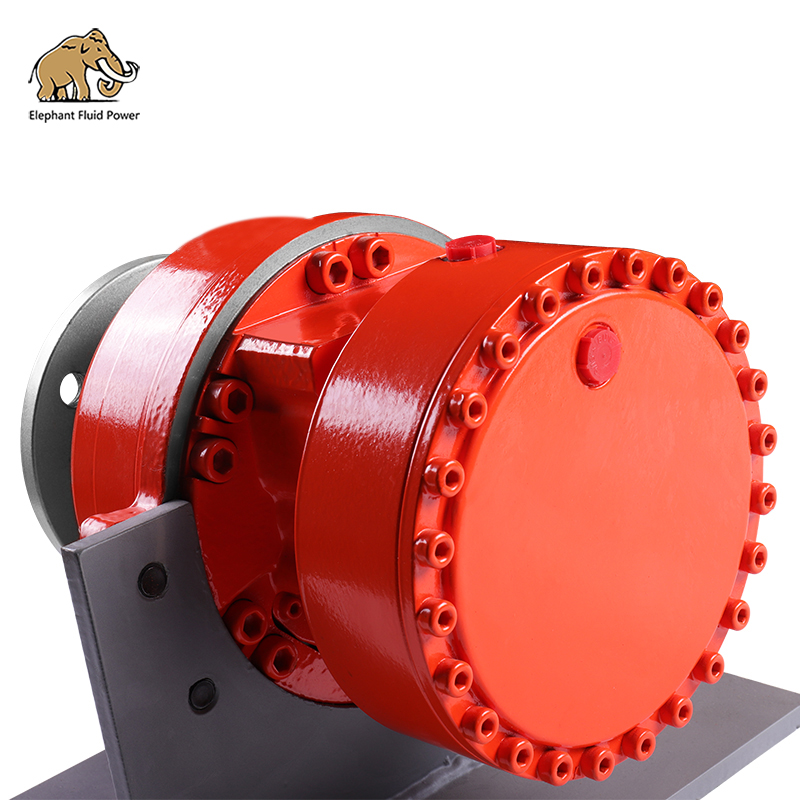

    Poclain 05 5a750 5h565 Hydraulic Piston Motor For Skid Steer Loader

    Ask Lasest Price
    Brand Name : Elephant Fluid Power
    Model Number : 05 5a750 5h565
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 sets per month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Poclain 05 5a750 5h565 Hydraulic Piston Motor For Skid Steer Loader

    OEM Poclain 05 5a750 5h565 Motor For Skid Steer Loader Heavy Equipment Repair Parts


    Elephant fluid power company supply the series hydraulic motors, like H05 Series piston motors
    matching Rexroth motors, the same specifiion, same design, and performance,100% replacement of original type.


    Product details

    Radial piston type,
    Adopt Imported Bearing and Oil Seal, etc,
    Rexroth same series motor perfect replacement,
    Designed in control modules,combine freely,
    High efficiency,High pressure, low noise,
    Radial piston,Low speed,High torque.

    Appliion
    Mining Machinery: Coal Winning Machine, Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
    Engineering Machinery: Skid Steer Loader, Down-the-hole Drill, Rotary Drill, Mini and Midi Excavators, Mixer Truck, Cutting Machine
    Marine Machinery: Gantry Crane
    Type
    05-380

    05-470

    05-520

    05-565

    05-680

    05-750

    Displacement(ml/r)

    380

    470

    520

    565

    680

    750

    Continuous output power(kw)

    29

    29

    29

    29

    35

    35

    Differential pressure 10Mpa torque(Nm)

    604

    748

    827

    899

    1082

    1194

    Rated torque(Nm)

    1419

    1756

    1942

    2111

    2540

    2802

    Pressure rating(Mpa)

    25

    25

    25

    25

    25

    25

    Max. pressure(Mpa)

    40

    40

    40

    40

    40

    40

    Max. speed(rpm)

    220

    220

    220

    220

    220

    170

    features:


    -- High performance rotary group with well-proven spherical control area offering the following advantages, self-centering.

    -- Low periph-eral speed

    -- High efficient.

    -- Long service life robust rolling bearing.

    -- Drive shaft will support radial loads.

    -- Low noise level.

    -- High duty roller bearing for intermettent high pressure operation.

    -- For continuous duty hydrostatic are availabe.

    -- Excellent starting characteristics.

    -- High power density

    -- Optional mounting position

    Our advantages:


    High performance:The performance of our motor is very close to Poclain & Rexroth original motors, even sometimes be superior to original motor.

    100% interchangeable:Both complete motor and spare parts, our products could completely replace to Poclain & Rexroth original motors.

    Reasonable price:In the spirit of winwin principle, our price system has been settled much lower than Poclain & Rexroth original motors.

    Fast delivery time:Most of the spare parts we have inventory, so that we can keep the delivery time within 10 days for regular motor.

    Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.
