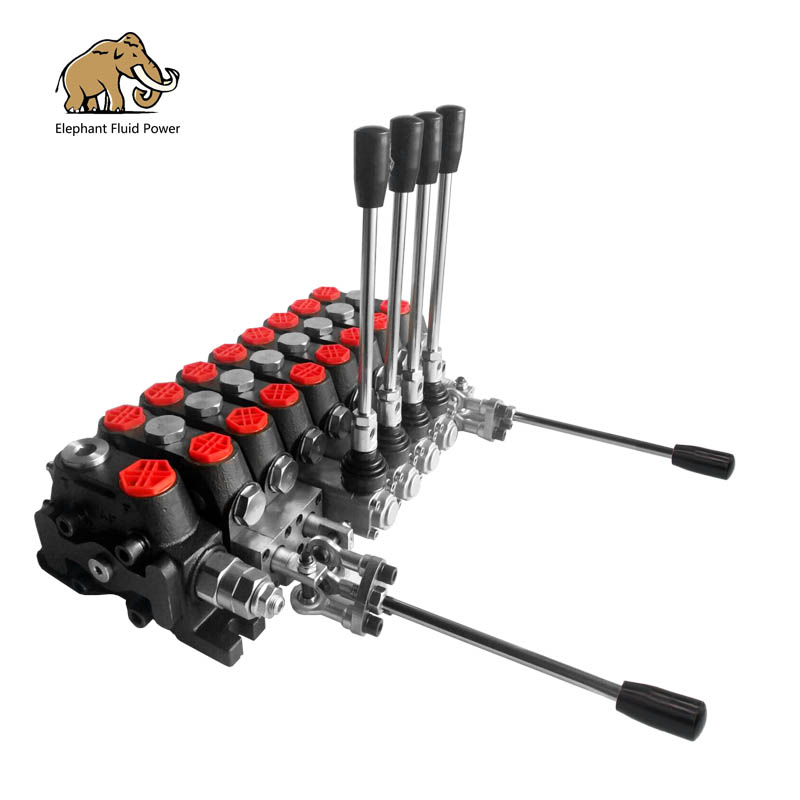

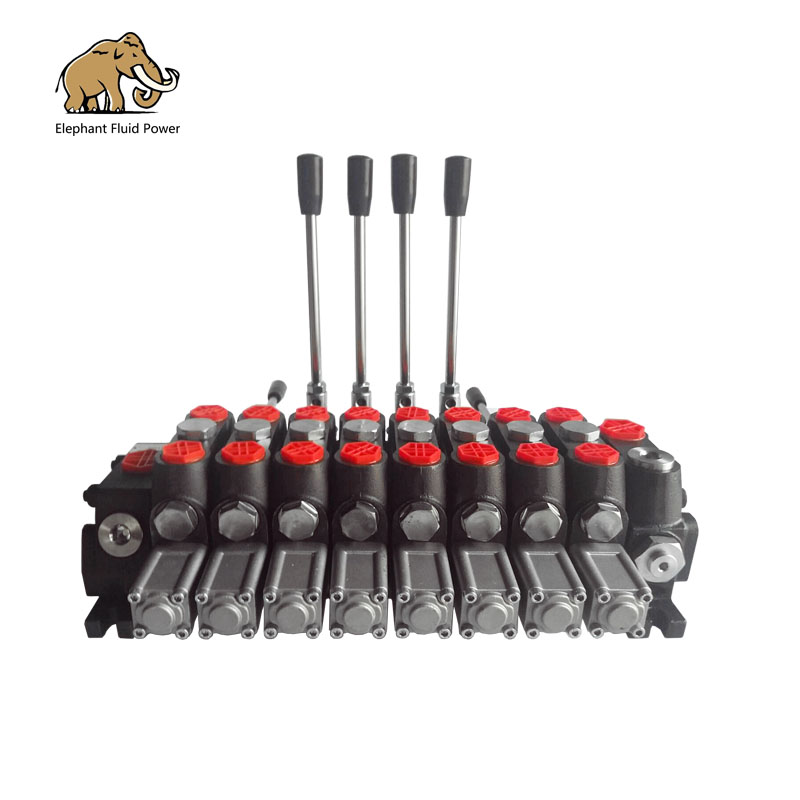

Model number:
DCV100-8
| Rated flow | Max flow | Max pressure | Pilot control pressure | Pneumatic control pressure | Spool strike |
| 100L/min | 120L/min | 31.5MPa | 10-13bar | 5-10bar | ±7 mm |
DCV directional control valve have the features of high pressure,
compact construct, stable over load valve
performance and high universality.It is widely used on construction
machine,sanitation vehicle, drilling machine, special purpose
vehicle, etc.
- Auxiliary valve:over load valve, anti-cavitation valve,combined
valves, etc.
- Spool function:A, O, Y, P, etc.
- Control type:manual, pneumatic, electro-hydraulic,
electro-pneumatic, etc.
- Circuit type:parallel,series-parallel
- C port(oil bridge) as hydraulic source for other parts
- Structure:Sectional
DCV directional control valve have the features of below:
1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined
valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic,
electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
DCV XX / X - X X X - X X X X - X X X X ... -X - X X
(1) Flow: 40, 45, 60, 100, 140, 200
(2) Number of spools: 1-12
(3) Inlet section type: see table (1)
(4) Relief valve set pressure: 150-315 bar
(5) Inlet port size: see table (2)
(6) Spool type: see table (3)
(7) Spool handle side arrangement: see table (4)
(8) Spool cap side arrangement: see table (5)
(9) Working section arrangement: see table (6)
(10) Work port size: see table (2)
(11) Outlet section type: see table (7)
(12) Outlet port size: see table (2)
DCV directional control valve is designed for high pressure
hydraulic system such as drilling machine, sanitation, etc.
DCV XX / X - X X X - X X X X - X X X X ... -X - X X
(1) Flow: 40, 45, 60, 100, 140, 200
(2) Number of spools: 1-12
(3) Inlet section type: see table (1)
(4) Relief valve set pressure: 150-315 bar
(5) Inlet port size: see table (2)
(6) Spool type: see table (3)
(7) Spool handle side arrangement: see table (4)
(8) Spool cap side arrangement: see table (5)
(9) Working section arrangement: see table (6)
(10) Work port size: see table (2)
(11) Outlet section type: see table (7)
(12) Outlet port size: see table (2)
DCV directional control valve is designed for high pressure
hydraulic system such as drilling machine, sanitation, etc.
Elephant Fluid Power is professional hydraulic components
manufacture in China
We have more distributor hydraulics (Directional control valve) for
you
we produce, manufacture, export, provide you with high quality, low
price products
our products are very competitive, no matter what control method
(Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic,
electro-hydraulic, etc.)
any flow (40 liters - 140 liters available)
any size (1 spool to 12 spool available)
Please contact us for the best offer.
