    Industrial Cranes Monoblock Directional Control Valve P40 Series

    Ask Lasest Price
    Price : 20
    Payment Terms : T/T
    Delivery Time : 15
    Brand Name : Elephant fluid power
    Model Number : P40 Series
    • Product Details
    • Company Profile

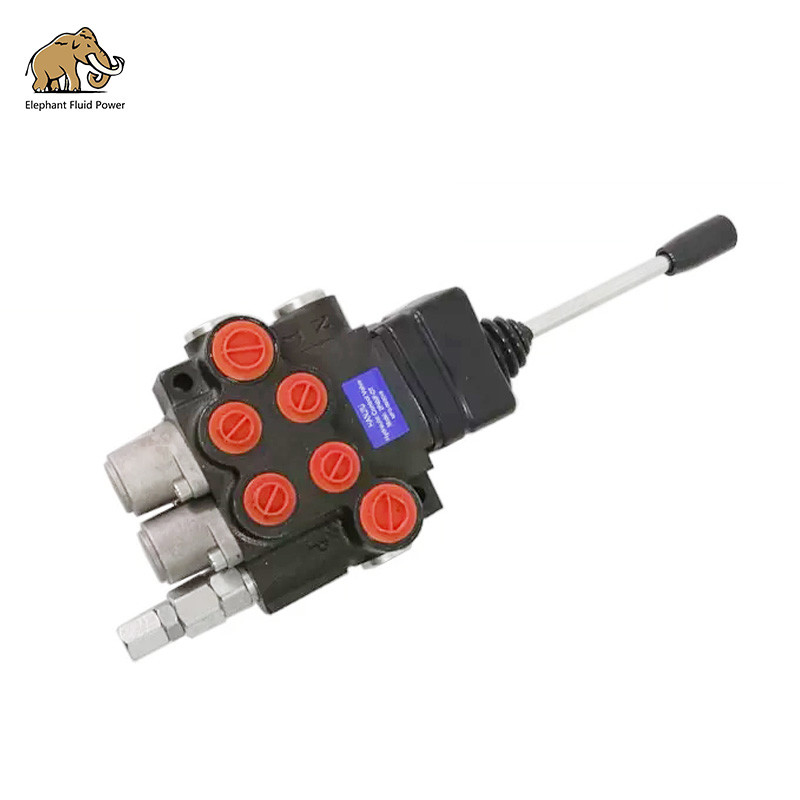

    Industrial Cranes Monoblock Directional Control Valve P40 Series

    Industrial Control Valve P40 Series Monoblock Directional contral Valve



    The use of P40 P80 valves has become commonplace in many industrial and manufacturing appliions, such as; cranes, assembly lines, forestry equipment, mining trucks and excavators. In fact, there are high requirements for the use of this P40 P80 valve, so that it almost replaces almost all traditional mechanical hydraulic control directional valves in modern hydraulic control systems.



    P40 Specifiion:

    Rated Flow40L/min10.6 US GPM
    Max Pressure250 bar3626 psi
    ViscosityWorking Range15 - 75 mm2/S15 - 75 cst
    Min Value12 mm2/S12 cst
    Max Value400 mm2/S400 cst
    Ambient Temperature Range-40 - 80 ºC-40 - 176 °F
    StructureMonoblock: 1 - 7 sections


    P40 Other Specifiion:
    Inner check valveThe check valve inside the valve body is to insure the hydraulic oil will not be returned.
    Inner relief valveThe relief valve inside the valve body is able to adjust the hydraulic system working pressure.
    Oil wayParallel circuit, power beyond option
    Control WayManual control, pneumatic control, hydraulic and electric control for optional.
    Valve constructionmonoblock construction, 1-6 levers.
    Spool FunctionO,Y, P,A.
    OptionHydraulic lock is available to be added on A and B port.
    Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc

    Industrial Cranes Monoblock Directional Control Valve P40 SeriesIndustrial Cranes Monoblock Directional Control Valve P40 SeriesIndustrial Cranes Monoblock Directional Control Valve P40 Series


    P40 Other Series :

    Monoblock valveFlowNom. PressureSpool
    P4040L/Min

    E 16 MPa

    F 20 MPa

    1
    P4040L/Min

    E 16 MPa

    F 20 MPa

    2
    P4040L/Min

    E 16 MPa

    F 20 MPa

    3
    P4040L/Min

    E 16 MPa

    F 20 MPa

    4
    P4040L/Min

    E 16 MPa

    F 20 MPa

    5
    P4040L/Min

    E 16 MPa

    F 20 MPa

    6
    P8080L/Min

    E 16 MPa

    F 20 MPa

    1
    P8080L/Min

    E 16 MPa

    F 20 MPa

    2
    P8080L/Min

    E 16 MPa

    F 20 MPa

    3
    P8080L/Min

    E 16 MPa

    F 20 MPa

    4
    P8080L/Min

    E 16 MPa

    F 20 MPa

    6
    P120120L/Min

    E 16 MPa

    F 20 MPa

    1
    P120120L/Min

    E 16 MPa

    F 20 MPa

    2
    P120120L/Min

    E 16 MPa

    F 20 MPa

    3
    P120120L/Min

    E 16 MPa

    F 20 MPa

    4
    P120120L/Min

    E 16 MPa

    F 20 MPa

    5
    P120120L/Min

    E 16 MPa

    F 20 MPa

    6
