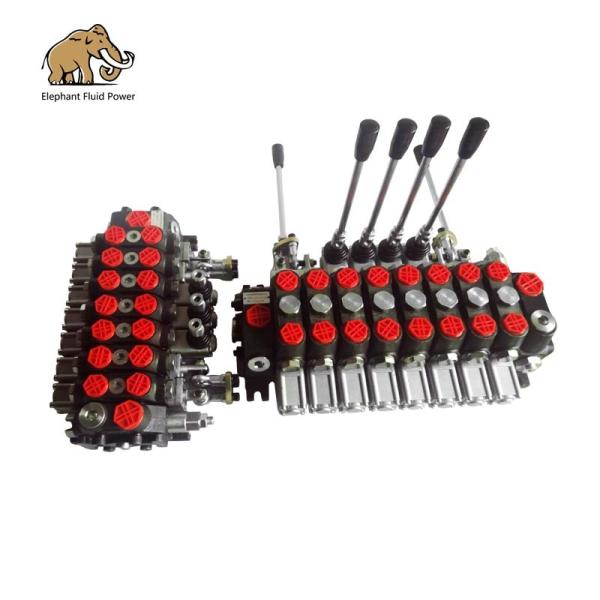

Truck Mounted Cranes Directional Control Valve DCV100 Manual
Control
When safe, rugged, long-life performance is needed, Hanjiu
Hydraulic Directional Valve & Power Systems products are there to
do the job. Hanjiu Offer a full line of directional control valves,
hydraulic controllers and crane specific solutions for this market.
Hanjiu offer a range of original quality and OEM replacement
hydraulic components for Construction, Mobile, Heavy duty
equipment.
Elephant Fluid Power has developed appliion specific control
solutions for this market, which are intended to improve machine
performance and lower the installed cost. Our long standing
appliion knowledge of these machines has enabled Parker to develop
features truly valued by the customer and the end-user.
Hydraulic hand valves enable operator to control hydraulic system
and individual components.
We supply all types of hydraulic valves like Monoblock, Sectional,
Manual, Joystick, Cable, Pneumatic, Solenoid, electro-pnematic,
electro-hydraulic, etc. which are mostly used in marien appliions,
construction machinery, agricultural machinery, heavy road vehicles
and industry.
Available manual, pneumatic control, electric and pneumatic control
,hydraulic and electric control.
PARAMETERS
Nom. Pressure
(MPa) | Max.Pressure
(MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) | hydraulic oil |
Tem.range
(ºC) | Visc.range
(mm2/S) | filtrating accuracy
(μm) |
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
DCV directional control valve have the features of below
1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined
valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic,
electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
Elephant Fluid Power manufacture both pressure compensated
directional control valves, and directional control valves. Made of
cast iron, our valves are durable and have a long life. They
perform well, even in adverse conditions, due to their design.
Depending on the specific appliion, there are multiple types of
valves from us, please contact us to get more informations
