Hydraulic controls, 3 spool hydraulic control valve, sectional
valves DCV200
Available manual, pneumatic control, electric and pneumatic control
,hydraulic and electric control.
PARAMETERS
Nom. Pressure
(MPa) | Max.Pressure
(MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) | hydraulic oil |
Tem.rang
(ºC) | Visc.rang
(mm2/S) | filtrating accuracy
(μm) |
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
DCV directional control valve have the features of below
1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined
valves, etc.
6, Spool function:A, O, Y, P, etc.

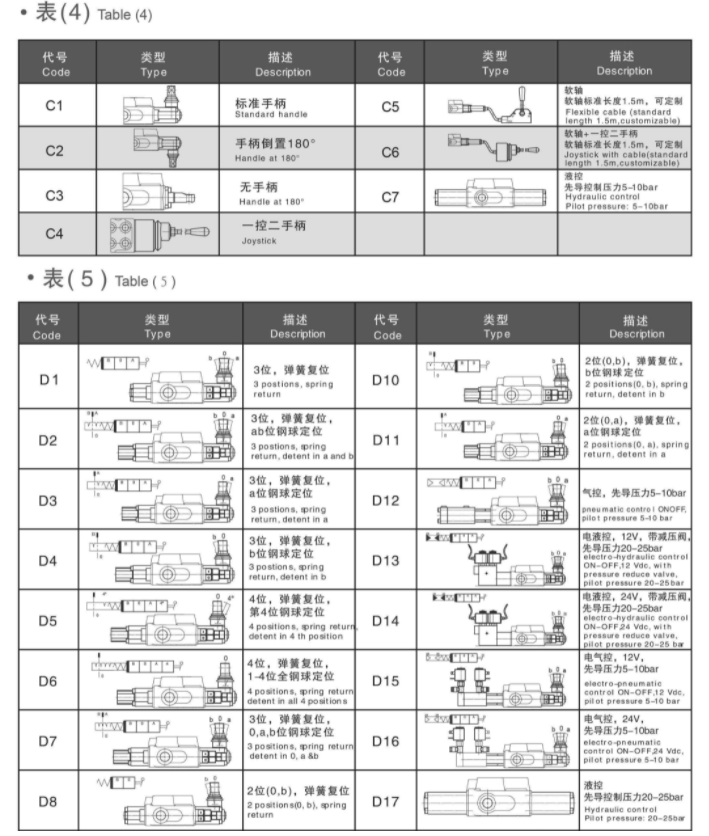

7, Control type:manual, joystick, cable, pneumatic,
electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
Elephant Fluid Power has been engaged in the hydraulic business
since the beginning of the 20th century. It has a history of nearly
20 years and has always been upholding the principles of "quality
first", "credit first" and "zero complaint", and has become a new
leader in the hydraulics industry. Elephant Fluid Power insists on
good products, good service, and has been providing customers with
better, more comprehensive hydraulic products, and constantly.
If you are interested in our products, please contact me, I will
provide the best price support and quality service.
I believe we will establish a good and long-term cooperation.
