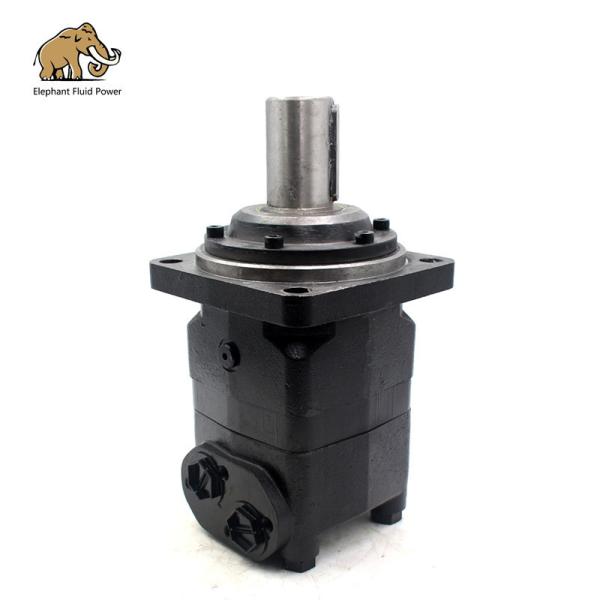

Hydraulic Torqmotor Gerotor Motor Hydraulic Orbit Motor BMV OMV
400cc Danfoss Aftermarket
Product details:
From the perspective of energy conversion, hydraulic pumps and
hydraulic motors are hydraulic components that work reversibly.
Inputting working fluid to any hydraulic pump can turn it into a
hydraulic motor working condition; on the contrary, when the main
shaft of the hydraulic motor is external When the torque is driven
to rotate, it can also be changed to the working condition of the
hydraulic pump.
Because they have the same basic structural elements-closed but
cyclically variable volume and corresponding oil distribution
mechanism. However, due to the different working conditions of
hydraulic motors and hydraulic pumps, their performance
requirements are different, so there are still many differences
between hydraulic motors and hydraulic pumps of the same type.
First, the hydraulic motor should be capable of forward and reverse
rotation,
so its internal structure is required to be symmetrical; the speed
range of the hydraulic motor needs to be large enough, especially
for its minimum stable speed. Therefore, it usually uses rolling
bearings or hydrostatic sliding bearings; secondly, because the
hydraulic motor works under the condition of input pressure oil, it
does not need to have the self-priming ability, but it needs a
certain initial seal to provide the necessary starting torque.
Because of these differences, hydraulic motors and hydraulic pumps
are similar in structure, but they cannot work reversibly.
Characteristic featutres:
High-speed motor gear motor has the advantages of small size, light
weight, simple structure, good manufacturability, insensitive to
oil pollution, impact resistance and small inertia, etc.
Appliion:
Hydraulic motors, also known as oil motors, are mainly used in
injection molding machinery, ships, hoists, construction machinery,
construction machinery, coal mining machinery, mining machinery,
metallurgical machinery, ship machinery, petrochemicals, port
machinery, etc.
Specifiions
| ain Specifiions: |
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | | Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | | Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 | | int. | 630 | 600 | 480 | 380 | 300 | 240 | | Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 | | int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | | peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | | Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 | | int. | 46 | 56 | 56 | 56 | 44 | 40 | | Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 | | int. | 24 | 24 | 24 | 21 | 18 | 16 | | peak | 28 | 28 | 28 | 24 | 21 | 18 | | Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 | | int. | 200 | 240 | 240 | 240 | 240 | 240 | | Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds
per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per
minute. |
Competitive Advantage
High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For appliions in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids
Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure
shaft seal)
At present, most popular Brands in Hydraulics are Danfoss, Char
Lynn, M+S, HANJIU, each with its own merits, however the reason why
more and more clients choose HANJIU is because it has obvious
advantages over other brands in terms of delivery, service, quality
and profit rate.
