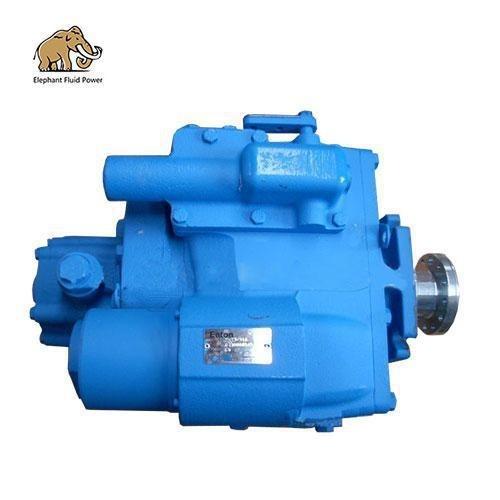

    Eaton 5423 Construction Machinery Spare Parts Rexroth Axial Piston Pump

    Ask Lasest Price
    Brand Name : Elephant Fluid Power
    Model Number : 5423-518
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C,Paypal
    Supply Ability : 1000 sets/ month
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    Eaton 5423 Construction Machinery Spare Parts Rexroth Axial Piston Pump

    Concrete mixer truck Eaton 5423-518 hydraulic pump Construction machine spare parts 5433-138 hydraulic motor


    Product detail:

    Closed circuit
    Nominal Pressure: 420 bar (6000 psi) and Peak Pressure 480 bar (7000 psi)
    Displacement from 63.7 to 124,8 cm3/r (3,89 to 7,62 in3/r)

    Eaton has the lead position in providing reliable and durable system solutions for transit mixers-vehicles on which downtime can mean disaster. Whether the truck is traveling down a highway or idling at a traffic light, the drum must maintain a consistent rotation speed. That's no problem when Eaton is on the inside. Eaton pump and motor provide the high pressure and high flow required to keep drums rotating.

    Drive shafts - a wide variety of options are available to suit every need.
    High strength swash plates on variable pumps and motors - resist deflection under high load.
    High strength cast iron housings - provide greater noise damping and wall strength.
    High flow check valves in pumps - keep the system primed with minimal pressure drop.
    Charge pumps on pumps - gerotor type, several displacement options are available to suit the needs of every appliion. All cast iron construction.
    Cartridge shaft seal - lends itself to easy serviceability. Mechanical face seal design tolerates high speed and high pressures.

    Technical Data
    Table of values (theoretical values, without efficiency and tolerances; values rounded)

    Eaton ACA pump39234623542364237620
    Displacementin3/rev3.894.65.446.447.62
    cm3/rev63,775,389,1105,5124,8
    Maximum Shaft Speed*Rpm @ 18°41604160372037202775
    Nominal Pressure**psi60006000600060006000
    (bar)(420)(420)(420)(420)(420)
    Peak Pressure***psi70007000700070007000
    (bar)(480)(480)(480)(480)(480)
    Output Flowgpm @3500 psi67.379.284.199.187.9
    lpm @241 bar255300318375333
    Input Torquelb-in @3500 psi23462786328539004552
    Nm @241 bar265315371441514

    Eaton oil pump motor for mixer truck, Eaton 5423/5433 oil pump 6423/6433 motor, mixer truck Sauer PV hydraulic pump motor, Eaton 420 plunger pump motor


    Eaton oil pump motor assembly and accessories.


    Eaton plunger pump accessories: valve plate, cylinder block, plunger, return plate, ball hinge, crescent bearing, spacer, oil seal, swash plate, constant rate valve, oil seal Professional production and sales of the following competitive hydraulic products: 1. ZF series P3301/P4300/P5300/P7300/PLM7/PLM9 reducer assembly and accessories: motor assembly, piston (plunger), box (rotor), lining Pads, rollers, PLM9 inner curved track/wave ring, PLM9 reducer housing, P4300 reducer housing, distribution plate, sun gear, planetary gear, planet carrier, lock nut, cone hub, pure FAG bearing 800730/ 801806/804312A, oil seal, radiator, relay, temperature switch, filter, output flange. 2. PMP reducer assembly: PMP6R100/PMP6.5S/PMP7.0S reducer assembly and accessories output flange, shell, sun gear,
