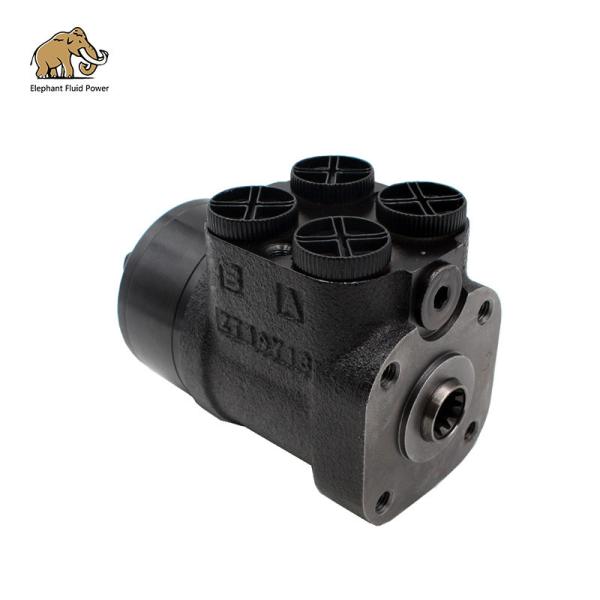

101S-2-250-16-E Orbitrol Steering Unit Hydraulic Steering Unit For
Agriculture Tractor Massey Ferguson ,
Product details:
101s ON/OR for hydraulic systems where oil is supplied by a
fixed-displacement pump. The range is wide and flexible,
characterised by: • Low steering torque, 0.5 Nm to 1.8 Nm in normal
steering situations • Low noise level and wide control range • One
or several built-in valve functions: pressure relief, shock,
suction, and/or nonreturn in pump connection • Port threads as
required, to DIN, ISO, SAE or JIS standards.
101s is available in versions “Open Center Reaction” or “Open
Center Non Reaction” (OR or ON) and with displacements from 40 to
500 cm3 /rev. 101s is also available in a “Closed Center Non
Reaction” (CN) type. CN steering units are for constant-pressure
systems with variable pump flow. In neutral position, the CN unit
shuts off oil flow between pump and tank. CN units are available
with displacements from 50 to 400 cm3 /rev.
Characteristic Features
1. 101s Orbital Steering Valve is with relief valve ,suction valve,
inlet check valve intergrated.
2. Different valve can be assembled freely,compact ,more convenient
,fitting.
3. European and American standards.
4. Replace (OSPC), M+S (HKUS) series.
5. Orbital Steering 101s match with Tractor OEM Part Number.
Specifiion
| HANJIU | 101s |
| OSPC |
| M+S | HKUS |
| Eaton | 401-1 |
| Parameters | Series
101S-*-***-**-* |
| Function code | 1,2,4 | 1,4 |
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 |
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 |
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 |
| Max.cont.back pressure | 2.5 |
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Appliion:
1. Tractor : TD 5040 , 5050 , 55D , 60D , 65D , 70D , 75D , 80D , 85D , 90D ,
95D
♦ Part Number : 5164616 = OSPC - 100 ON , 150-1151 = 101s - 100 ON
♦ Part Number : 5162551 = OSPC - 160 ON , 150-N1282 = 101s - 160 ON
2. Massey Ferguson Tractor : 230, 240, 253, 263, 340, 342, 350, 352, 355, 360, 362, 365, 372,
375
390, 396, 398, 399
♦ Part Number : 3821548M91 = 101s-100cc = OSPC100 ON
3. Massey Ferguson Tractor : 265, 275, 3275E, 285, 290, 298, 375E, 390E, 675, 690, 698, 699,
1004T
♦ Part Number : 1684986M91 = 101s-100cc = OSPC100 ON
4. Massey Ferguson Tractor : 365, 375, 390, 396, 398, 399
♦ Part Number : 1695445M91 = 101s-100cc = OSPC100 ON
5. Massey Ferguson Tractor : 3050, 3060, 3065, 6120, 6130, 6140, 6235, 6245, 6255
♦ Part Number : 3383107M1 = 101s-100cc = OSPC100 ON
6. Massey Ferguson Tractor : 3070, 3075, 3080, 3085, 3090, 3095, 3115, 3120, 3125, 6150, 6160
6170, 6180, 6190, 6235, 6245, 6255, 6260, 6265, 6270,6280
