    OSPM Orbitrol Steering Unit

    Ask Lasest Price
    Brand Name : Hanjiu
    Model Number : 109S
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C,Paypal
    Supply Ability : 30000 Set/month
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    OSPM Orbitrol Steering Unit

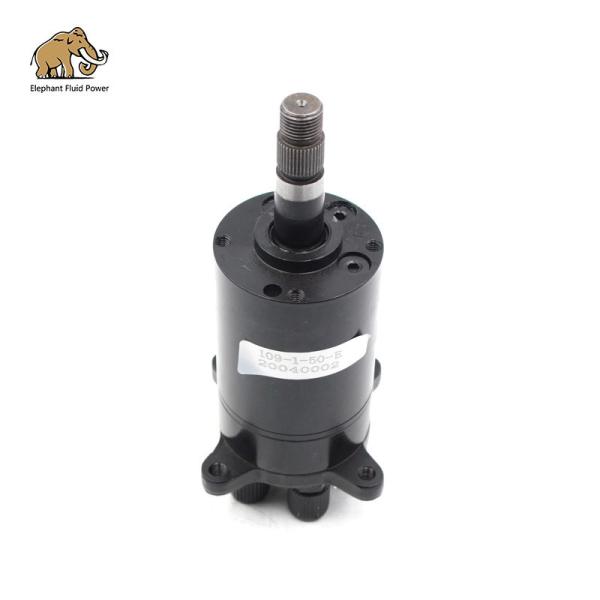

    Tractor Hydraulic Orbitrol Steering Valves 109 Series , OSPM Series High Pressure 109-1-50-E


    Product detail:


    109 series hydraulic steering unit is an integrated orbital steering unit with 4/5 tooth structure.This kind of steering unit has a
    small and exquisite structure with integrated check valve, relief valve and shock valves and its mounting dimension conforms
    to international standard.It can obtain more steering output torque
    through input of less power, with features of easy, flexible and reliable operation.

    Specifiions:


    ParametersType 109*-1-***-**-*
    Displacement(mL/r)203240506380
    Rated flow(L/min)3~20
    Rated Pressure(MPa)12.5
    Relief Valve Pressure Settings(MPa)06,07,08,09,10
    Shock Valves Pressure Settings(MPa)12,13,14,15,16
    Steering Torque(N·m)≤1.8
    Max.Cont.Preesure in Line T-PT(MPa)1

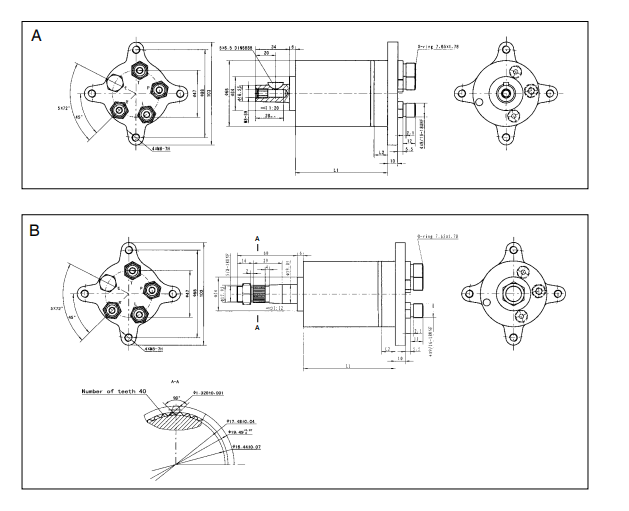

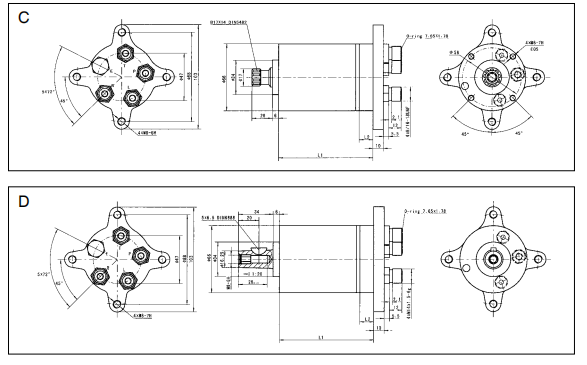

    Dimension L(mm)879296100105113




    Product appliion:


    Widely used in mini vehicles, such as mini forklift, mini tractor (and
    other agricultural machinery), mini earthmoving machinery,mini municipal vehicle, etc

    Products Features:


    1) We are professional manufacturer produce Hydraulic steering units .

    2) Quality match than , M+S, Eaton.

    3) Match than OEM spare parts code number.

    4) Appliion Kubota K7561-41510


    Products Features:


    1Small dimensions and low weight
    2End ports with integrated fittings
    3Easy installation and accessibility
    4Possibility of integrated steering column· Low pressure drop
    5Low input torque
    6Low system price
    7Low noise
