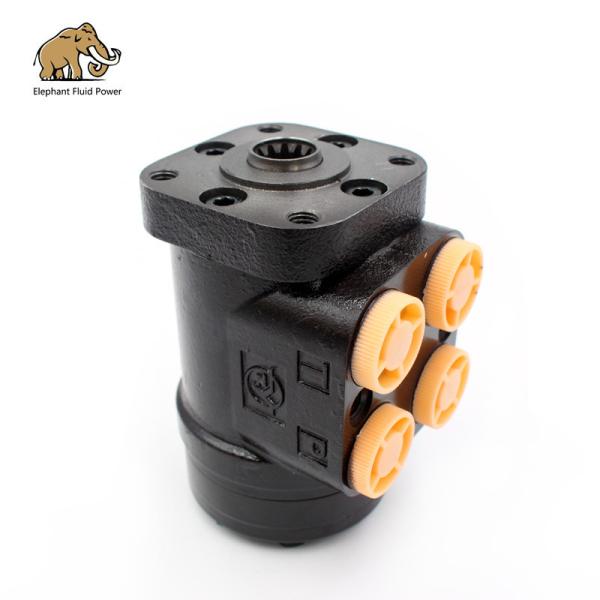

    BZZ5 Hydraulic Steering Control Valve

    Ask Lasest Price
    Brand Name : Hanjiu
    Model Number : BZZ
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C,Paypal
    Supply Ability : 30000 Set/month
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    BZZ5 Hydraulic Steering Control Valve

    Eaton Hydraulic Parts Hydraulic Orbitrol Steering BZZ5-E125BC-D Hydraulic Power Unit Marine Hydraulic Steering


    Product detail:


    SCU can be used in the area of steering of vehicle and hydraulic rudder of ships where the operator can use it to control power steering force with light operating force.It is safety ,reliable and smooth in the function and operation.
    The operation of steering units is hydrostatic. That is to say, there is no mechanical connection between the steering column and the steered wheels.Instead there are hydraulic pipes and hoses between steering unit and steering cylinders.
    When the steering wheel is turned, the steering unit meters an oil volume proportional to the rate of rotation of the steering wheel.This volume of oil is directed to the appropriate side of the steering cylinder, while simultaneously the displaced oil is directed to tank.

    Specifiions:


    Wheel Loader Hydraulic Steering Units
    BZZ1 Series
    BZZ2 Series
    BZZ3 Series
    BZZ5 Series



    Product appliion:


    Hydraulic steering control unit(SCU) is widely used both in the steering system of vehicles and the marine rudder. The operator
    can obtain bigger steering control force with less steering force, and its function is more safety and reliable, its operation is more
    smooth and flexible.

    Products Features:


    Can help you reduce the machinery cost without mechanical linkage device, and can offer reliable and light structure.
    Can operate more flexible with light steering torque
    Can offer emergent manual steering in of engine failure
    Can be steering at the continuous speed with less steering torque.
    Can offer various hydraulic system and different mounting choice
    Can link various steering pump and hydraulic steering system

    Product Advantage:


    The steering load does not directly act on the steering wheel, and the operation is comfortable
    Low steering torque, the steering wheel can be continuously turned freely
    The product has many specifiions and a wide range of displacement, from 50 to 1250 mlr, which can meet various needs
    According to system needs, valve blocks of different functions and pressure levels can be connected
    With all the performance of load sensing
    The middle position of the steering gear is in a disconnected state (closed core), that is, when the steering gear is not working, the hydraulic oil is blocked by the steering gear, and the steering gear inlet has a higher pressure
    The steering circuit and other working circuits do not affect each other, and the main flow is given priority to ensure the steering circuit. When the steering gear is in the neutral position, only a small amount of flow passes through the steering gear, and the system saves energy
