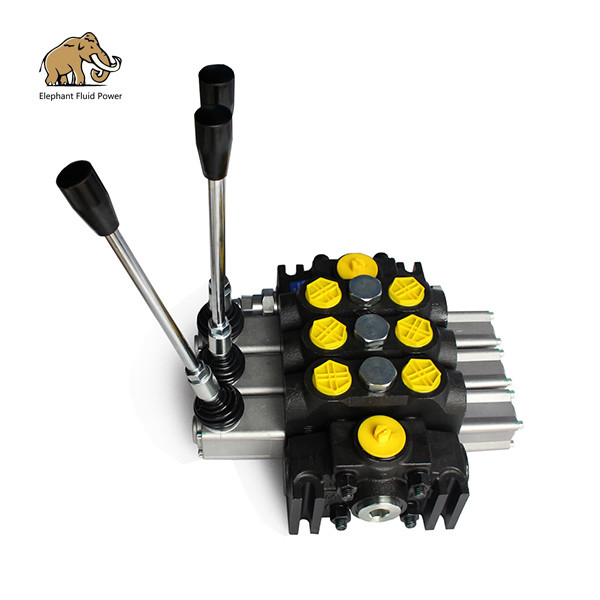

3 Spool Hydraulic Direction Valve DCV200S-3-20T-0W03 Control Valve
Sectional Valves
Product details:
Model: DCV200S-3-20T-0W03
Flow: 200LPM
Lever: 3
DCV directional control valve is designed for high pressure
hydraulic system such as drilling machine,sanitation,etc.
Specifiions:
| Norminal Flow | 200L/min |
| Max Flow | 26gallon |
| Max Pressure | 31.5mpa |
| Control Type | manual, pneumatic, hydraulic, electro-hydraulic |
| Allowed back pressure | ≤1 mpa |
| Oil port size | customizable |
| operating range | 15-75mm2/s |
| viscosity | min 12mm2/s, max 400mm2/s |
| ambient temperature range | -40-80°C |
| structure | sectional 1-12sections
|
Available manual, pneumatic control, electric and pneumatic control
,hydraulic and electric control.
PARAMETERS
Nom. Pressure
(MPa) | Max.Pressure
(MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) | hydraulic oil |
Tem.rang
(ºC) | Visc.rang
(mm2/S) | filtrating accuracy
(μm) |
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |

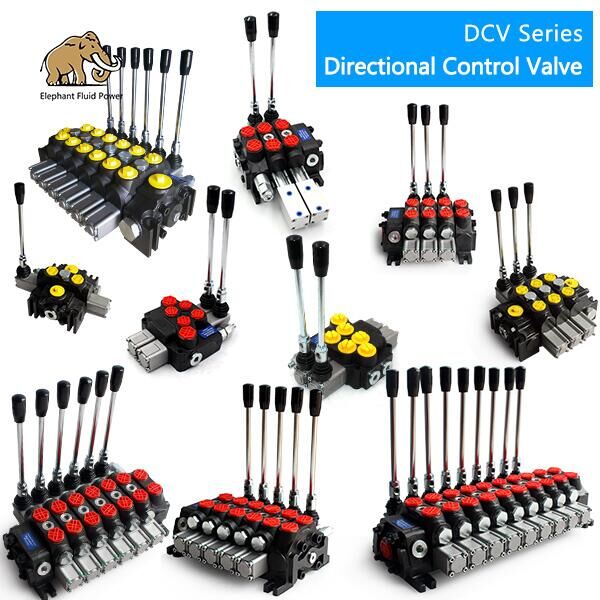

| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
DCV directional control valve have the features of below
1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined
valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic,
electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
We have more distributor hydraulics (Directional control valve) for
you, we produce, manufacture, export, provide you with high
quality, low price products, our products are very competitive, no
matter what control method (Control type: manual, joystick, cable,
pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.)
you need, any flow (40 liters - 140 liters available), any size (1
spool to 12 spool available), Please contact us for the best offer.
