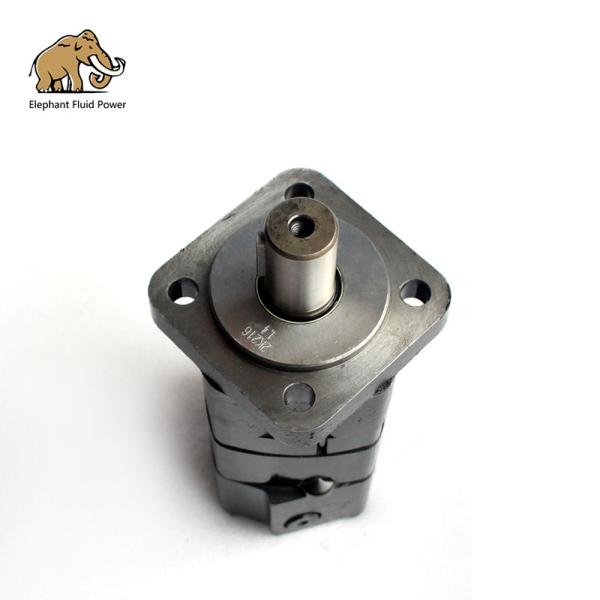

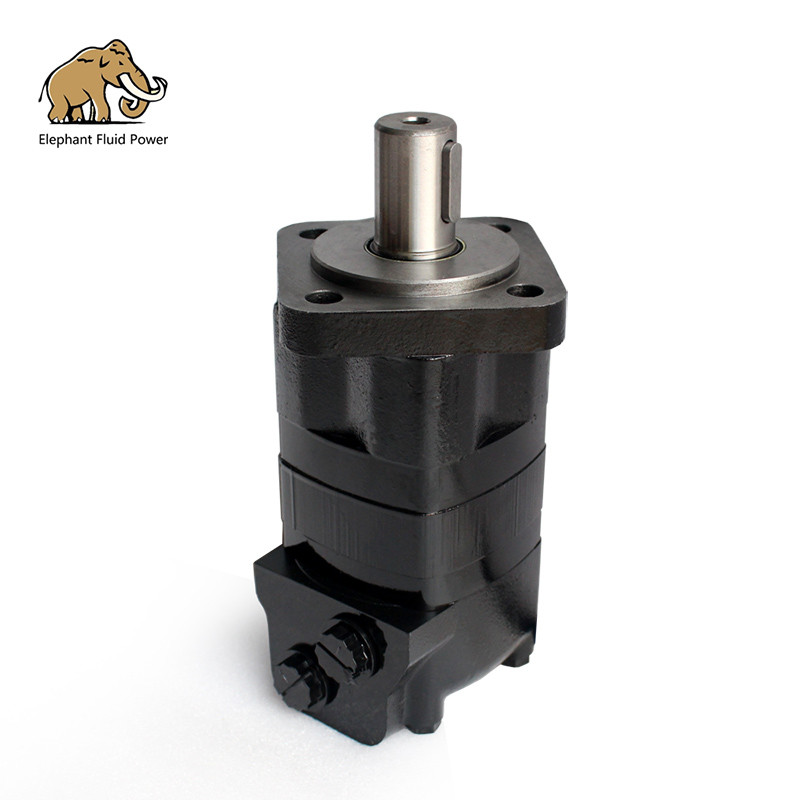

Hydraulic motors in Ireland BMK2 used in construction excavators
BMK2 new series motor adapt the advanced Geroler gear set designed
with disc distribution flow and high pressure. The unit
can be supplied the individual variant in operating multifunction
in accordance with requirement of appliions.
Appliion:
Hydraulic motors, also known as oil motors, are mainly used in
injection molding machinery, ships, hoists, construction machinery,
construction machinery, coal mining machinery, mining machinery,
metallurgical machinery, ship machinery, petrochemicals, port
machinery, etc.
Characteristic featutres:
High-speed motor gear motor has the advantages of small size, light
weight, simple structure, good manufacturability, insensitive to
oil pollution, impact resistance and small inertia, etc.
Specifiions
| Type | BMK2
65 | BMK2
80 | BMK2
100 | BMK2
125 | BMK2
160 | BMK2
200 | BMK2
250 | BMK2
315 | BMK2
400 | BMK2
475 | | Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | | Max.speed(rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 | | int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | Max.torque
(N•m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 | | int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | Max.pressure
drop(MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 | | int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | | peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | Max.flow
(L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | | int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | | Weight(kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds
per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per
minute.
|
Why choose us?
| High efficiency |
| High starting torque |
| Robust and compact design |
| High radial and axial bearing capacity |
| For appliions in both open and closed loop hydraulic systems |
| Suitable for a wide variety of hydraulics fluids |
| Smooth running over the entire speed range |
| Constant operating torque over a wide speed range |
| Long life under extreme operating conditions |
| High return pressure without the use of drain line (High pressure
shaft seal) |
Our company:
Elephant Fluid Power provides hydraulic products for mining
excavators, including hydraulic motors, hydraulic pumps and
hydraulic accessories. These hydraulic products are highly
competitive in the hydraulic markets of Ireland, Britain, Germany
and Poland. At present, our hydraulic motors have been widely used
in the repair and maintenance of construction machinery,
agricultural machinery, mining machinery, etc. in this market; at
the same time, we also provide spare parts for major hydraulic
brands and are available in the European market (such as Ireland,
the United Kingdom and Germany). ) Stands for Han Jiu. Brands of
hydraulic motors and hydraulic pumps. Our hydraulic motors have
been recognized by local consumers in the European market. At
present, we hope to further expand the hydraulic product market in
Ireland, Portugal, Spain and other regions, and hope to establish
long-term good cooperative relations with distributors and end
customers in Ireland and other countries.At present, most popular Brands in Hydraulics are Danfoss, Char
Lynn, M+S, HANJIU, each with its own merits, however the reason why
more and more clients choose HANJIU is because it has obvious
advantages over other brands in terms of delivery, service, quality
and profit rate.
