    Cast BMK4-109 Hydraulic Orbit Motor For Construction Machinery

    Ask Lasest Price
    Brand Name : Elephant Fluid Power
    Model Number : BMK4 series
    Price : More favorable price
    Payment Terms : Western Union,Paypal,T/T
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

    Cast BMK4-109 Hydraulic Orbit Motor For Construction Machinery


    hydraulic motors in series BMK4-109 for construction machinery


    End face distribution type cycloid hydraulic motor


    Characteristic features:

    Advanced column-inlaid stator and rotor parameter design, low starting pressure, high efficiency, stable operation at low speed
    Advanced shaft seal design, high back pressure bearing capacity
    Advanced and reliable linkage shaft design, so that the motor has a long life
    Advanced flow distribution mechanism design, with the characteristics of high flow distribution accuracy and automatic wear compensation
    Motors are allowed to be used in series and in parallel, and external drain pipes should be connected when used in series
    The tapered roller bearing support design has a large radial load capacity, so that the motor can directly drive the working mechanism
    A variety of installation and connection forms such as flanges, output shafts, and oil ports.

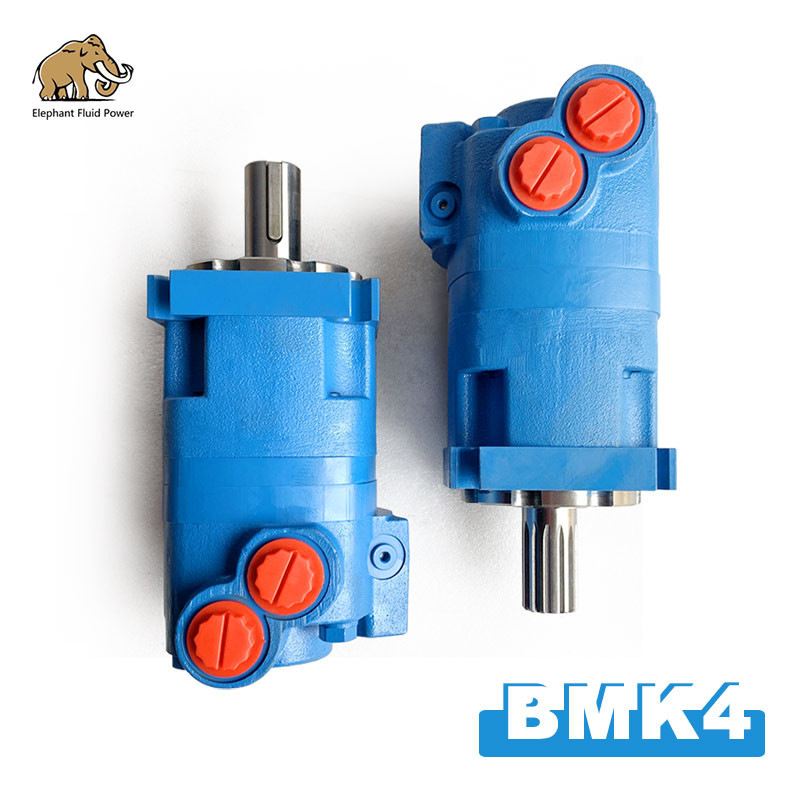

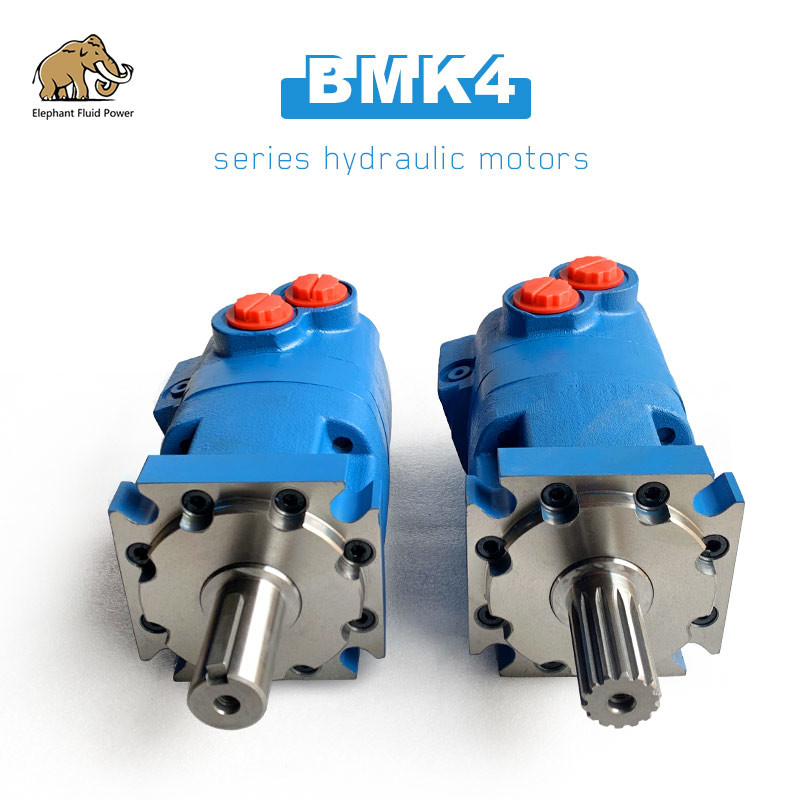

    BMK4 Hydraulic Orbit Motor

    Main Specifiions:

    TypeGeometric displacement (cm3 /rev.)Max.speed(rpm)Max.flow
    (L/min)
    Max.torque
    (N•m)
    Max.pressure
    drop(MPa)
    Wight(kg)
    BMK4
    160
    160cont.5609545020512.8
    int.670115680310
    BMK4
    195
    195cont.4409556520513.2
    int.535115855310
    BMK4
    245
    245cont.3549570020513.8
    int.480130890260
    BMK4
    305
    305cont.2909585620514.4
    int.3951301085260
    BMK4
    395
    395cont.22595102019015.2
    int.3501501285240
    BMK4
    490
    490cont.1809595014016
    int.2851501154170

    Our company:


    Elephant Fluid Power sold two systemsThe hydraulic motor products . One is a hydraulic motors connected in series system. The series-connected hydraulic motor simply means that all motors will rotate at the same speed. One is the parallel hydraulic motor system. The hydraulic motors connected in parallel are opposite to the hydraulic motors connected in series. The hydraulic motors of our company's two different systems are widely used in construction machinery, agricultural machinery, mining machinery, etc., and have been widely praised in these markets.
    Elephant Fluid Power is a professional manufacturer and distributor of Hydraulic components which are widely applied to engineer construction,agriculture,marine, mining,etc. All of products are with High quality.Including the Hydraulic pump,hydraulic motor,Pump spare parts,Motor spare parts,Hydraulic Vlave,Steering Unit....

    Why choose us?


    High efficiency
    High starting torque
    Robust and compact design
    High radial and axial bearing capacity
    For appliions in both open and closed loop hydraulic systems
    Suitable for a wide variety of hydraulics fluids
    Smooth running over the entire speed range
    Constant operating torque over a wide speed range
    Long life under extreme operating conditions
    High return pressure without the use of drain line (High pressure shaft seal)
